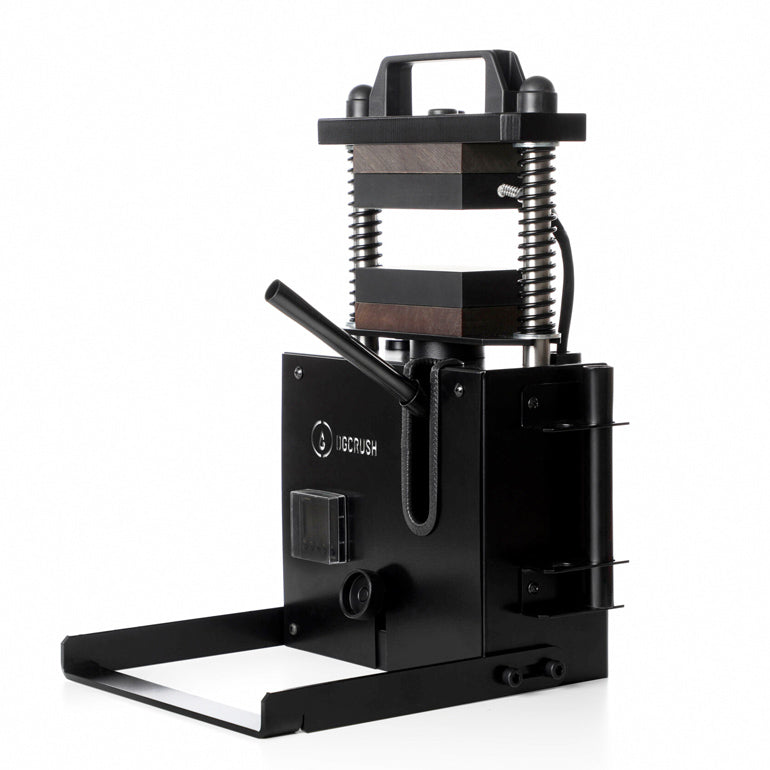

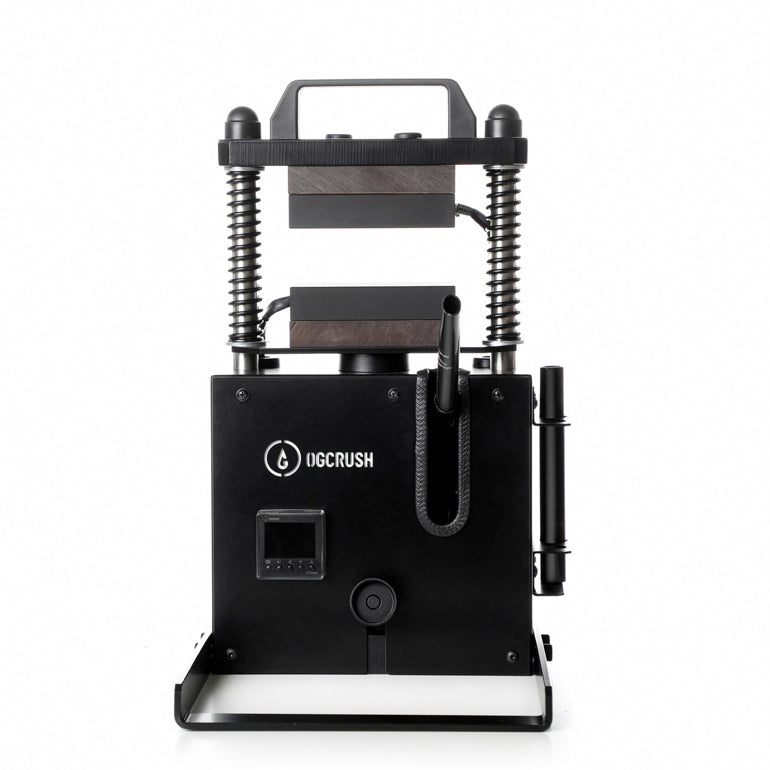

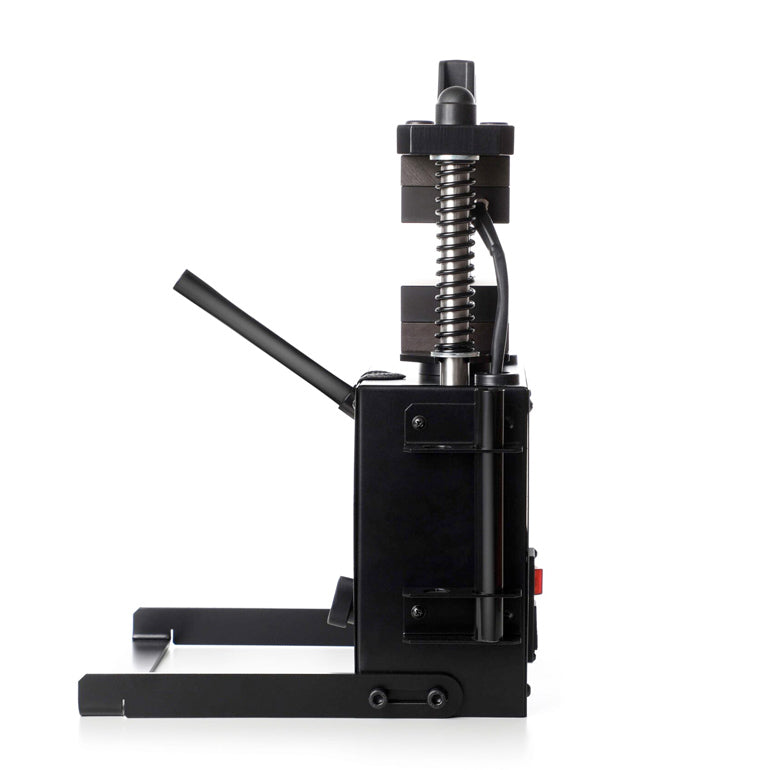

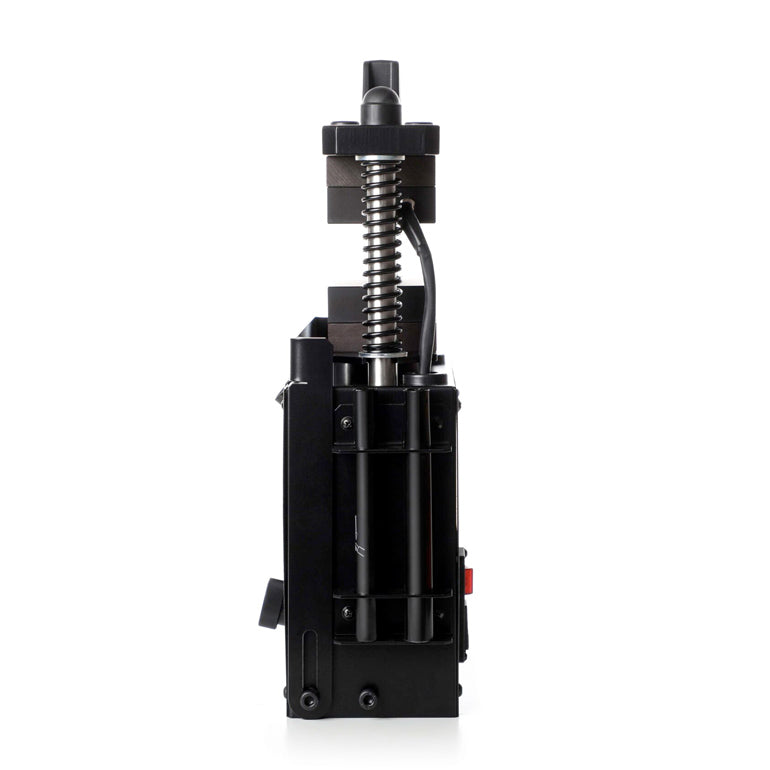

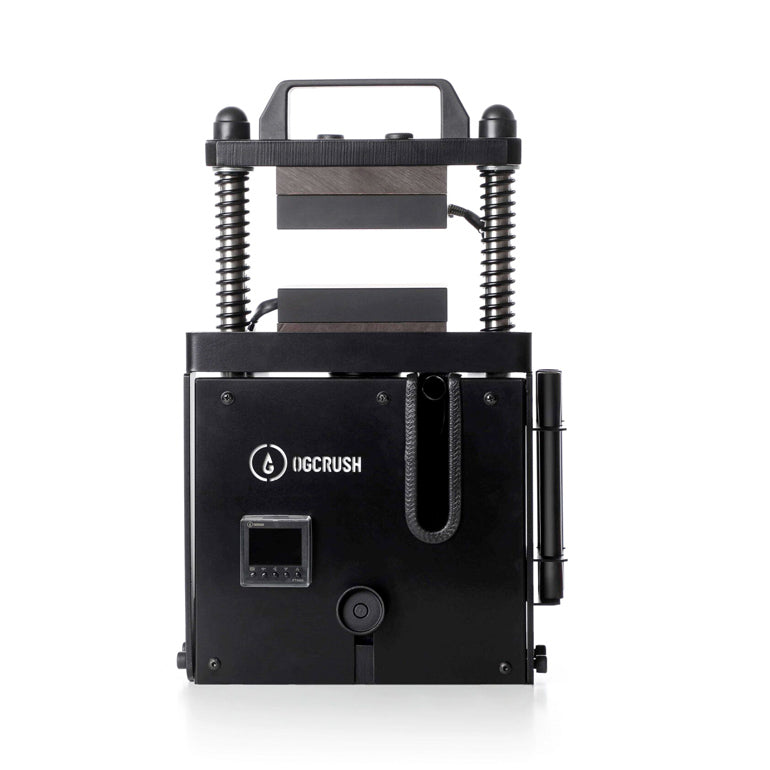

Rosin press 5T – OG5T

This Rosin press is compact, powerful, easy to use and lightweight.

Introducing the Rosin press 5T OG5T, the ultimate solution for your pressing needs! With a high pressure of 5 tons, this machine is capable of extracting high-quality rosin from your favourite botanicals with ease.

Equipped with a digital temperature control, you can easily adjust the heat to ensure that you get the perfect yield and consistency every time. The machine's sturdy build and efficient heating system allow for consistent results and high output.

The Rosin press 5T OG5T features a user-friendly design that makes it easy to operate even for those new to rosin pressing. Its compact size and portable design make it perfect for use at home, in a lab, or even on the go.

This rosin press is built to last, with a durable frame and high-quality components that ensure long-lasting performance. The OG5T is perfect for those who are looking for a reliable and high-performing machine that will deliver consistent results.

Whether you are a small-scale producer or a large-scale operation, the Rosin press 5T OG5T is the perfect tool to take your rosin production to the next level. Get your hands on this must-have machine today and experience the difference in quality and performance!

This hydraulic rosin extractor features dual heating plates that are perfectly aligned for optimal extraction, and only measures 559 x 406 x 348mm. It can be used in any location.

Features

• Made in Czech Republic.
• The hydraulic rosin press kit features anodized dual heat plates measuring 76x127mm that stay aligned during pressing.
• The plate's size is appropriate for use with extraction filters and pre-press moulds.
• Temperature controller with accurate detector for durability.
• The manual oil extractor has a long lifespan.
• The frame is made of steel and has an H-shape, and is paired with a 5 ton hydraulic bottle jack.
• The hydraulic bottle jack is simple to replace.
• The aluminium working surface used is food-grade, which allows for easy cleaning and ensures optimal flavour.
• The recommended pressure for pressing 1-12g flowers and 20g hash is ideal.
• Unleash the power of the 6 ton hydraulic bottle jack and witness it crank out a whopping 1,000 PSI when paired with 330mm2 rosin extraction filters!
• The rosin press plates have dual insulation layers that enable them to attain 200°F / 93°C within 8-10 minutes while also safeguarding the machine from heat loss.
• Small, portable and convenient for easy storage.

How to use Rosin press 5T – OG5T?

Safety precautions

• Maximum 5 T bottle jack
• Point the head of bottle jack to the circle at the bottom plate
• No need to lock bottle jack on the bottom frame

Recommendation

• To prevent leaking, do not turn the bleed valve over 720 degrees (2 full revolutions)
• Open bleed valve slowly with a half revolution
• One person operation
• Keep out of reach of children

Here are the steps to use the Rosin press 5T - OG5T:

1. Power on the Rosin press and wait for it to heat up to the desired temperature. You can adjust the temperature using the digital temperature control. Please see PID controller settings below.

2. Take a piece of parchment paper and place your botanical material in the centre. Fold the parchment paper over the botanical material, ensuring that it is completely covered.

3. Place the folded parchment paper between the two plates of the Rosin press.

4. Adjust the pressure using the pressure knob. It is recommended to start with a lower pressure and increase gradually.

5. Press the button to activate the press. The plates will close, and pressure will be applied to the botanical material.

6. Wait for a few seconds (usually between 30-60 seconds), and then release the pressure using the pressure knob.

7. Open the Rosin press and remove the parchment paper. Your extracted rosin should be visible on the parchment paper.

8. Collect the rosin using a tool such as a dabber or scraper.

9. Repeat the process with additional botanical material as desired.

10. When finished, power off the Rosin press and clean any residue from the plates.

Remember to always follow the manufacturer's instructions and safety guidelines when using the Rosin press 5T - OG5T.

PID controller setting

◄ press button to increase and decrease the value at hundreds, tens and ones values

▼ or ▲ from 0-9 for your desired temperature

What’s In the Box?

• 1 x OG5T all-in-one hydraulic rosin press

• 1 x Power cable  EU Plug ( + 1x Free UK adapter )


Technical Specifications
